GRUNDIG

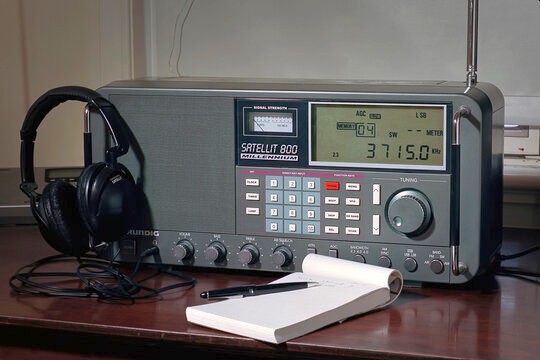

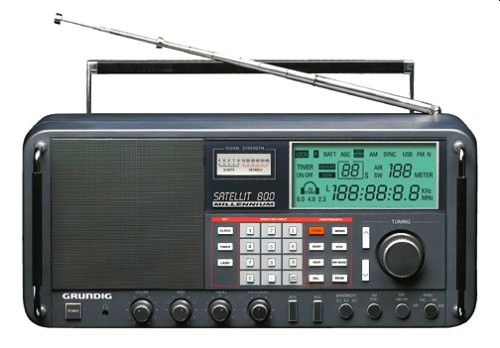

Satellit 800 Millennium
Receptor de Luxo de
mesa e portátil com SSB e Filtros Wide e Narrow
Cobertura de 150kHz a 30Mhz
AM/USB/LSB e Detector Syncro
Air Band ( Banda de VHF aviação ) e FM Estéreo
Acompanha: Rádio + Manual em
PDF + Fonte
Receptor de Luxo
Exclusivo da minha coleção particular de RXs
 |
Frequency Range:
0.1-30 MHz AM, USB, LSB Modes.
87-108 MHz FM Mode.
118-137 MHz AM Mode (VHF Air band).
Sensitivity:
SSB: Less than 0.5 µV, 0. -30 MHz. (10 dB S+N/N):
AM: Less than 2.0 µV, 0.1-30 MHz. (10 dB S+N/N).
AM: Less than 4.0µV, 118-137 MHz. (1000 Hz, 30% Mod).
FM: Less than 4.0 µV, 87-108 MHz. (20 dB S/N) (monaural).
Frequency Stability:
±10 ppm, 0° to 50° C.
Frequency Accuracy:
Better than ± 100 Hz, @ 25° C.
Selectivity - SSB, AM:
6 kHz @ -6 dB. less than 12 kHz @ -60 dB.
4 kHz @ -6 dB, less than 9 kHz @ -60 dB.
2.3 kHz @-6 dB, less than 5 kHz @ -60 dB.
IF Frequencies:
AM/SSB: 1st IF 55.845 MHz. 2nd IF 455 kHz.
FM: First IF 10.7 MHz (Single Conversion).
Image Rejection:
Greater than 60 dB 0.1 to 30 MHz.
Greater than 60 dB 118 to 137 MHz.
Greater than 50 dB 87 to 108 MHz.
IF Rejection:
Greater than 80 dB, 55.845 MHz.
Greater than 80 dB, 455 kHz.
IP3 - Intercept Point:
Greater than + 10 dBm @ 100 kHz spacing. (@ 50 Ohm Ant. Input,
Attenuator OFF),
Greater than - 20 dBm @ 5 kHz spacing.
AGC Performance:
Threshold: 1.0 mV. Attack Time: 1 millisecond.
Release Time: SLOW 3 seconds, FAST 300 milliseconds.
Less than 6 dB change in audio output for 90 dB RF input change (referenced
from the AGC threshold point plus 3 dB).
Internal Antennas:
56 3/4 inches (1.414 meters) telescoping whip (for use on all bands).
Ferrite rod antenna (for use from 100 kHz thru 1800 kHz).

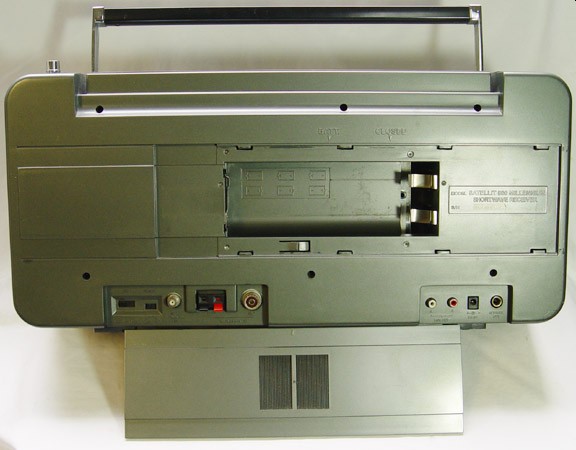

External Antenna Inputs:
0. 1 - 30 MHz: 50 Ohm SO-239 connector or 2 terminal compression
connector for: 500 Ohm input with ground.
87 - 108 MHz and 118 - 137 MHz: 75 Ohm “F” type connector.
External Speaker Output:
1 Watt each nominal into two 4 Ohm speakers with 9 VDC supply voltage.
External jack:
Two-way for Stereo output.
Line Audio Output:
300 mV, 4.7K Ohms.
Headphone Jack:
1/8 inch (3.175mm) stereo/mono type.
DC Power Requirements:
Input: 7-10 VDC @ 1 Amp. supplied from 120 VAC ADAPTER, external DC
Power Supply or 5.7 to 9.0 VDC supplied by six internally mounted “D”
cell (1.5V) batteries (not supplied).
Current requirements:
From 9.0 VDC Supply or Batteries with 1/4 W average Audio Output, Mode
Dependent:
510 mA minimum with lamp off, 830 mA maximum with lamp on.
Operating Temperature:
0° to +50° C.
Weight:
14.55 lbs. (6.6 kg), including AC adapter, (batteries NOT included).
Size:
Width: 20 7/8 inches (53.6 cm).
Height: 9 1/4 inches (23.5 cm) with handle retracted.
Depth: 8 1/2 inches (21.6 cm) including front handles.
Supplied AC Adapter:
Input: 110-127 VAC 60 Hz.
Output: 9 VDC @ 1 Amp maximum.
|
